M24 YF-24 3 Pin Socket Plug IP68 Powercom Outdoor Cnlinko Male Waterproof Connector

Product Categories

Shenzhen Connectorworld Technologies Co.Ltd.

Contact Now

Name: M24 YF24 3 Pin Socket Plug IP68 Powercom Outdoor Cnlinko Male Waterproof Connector
Brand: CNLINKO
Price: 5.88 USD

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YF-24-C03PE-01-001

Certification : CUL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : US$5.88-6.88

Shape : ROUND

IP level : ip68

Type : XLR

Application : Power

Gender : male and female

Produce type : Powercon connector

Current rating(A) : 20A

Protection level : IP67/IP65

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : Quickly insert and pull out

Assembly : Solder

Operating voltage : 500V

Contact pin : Copper alloy(gold-plated)

Contact Now

M24 3 pin Socket Plug Powercom Outdoor Cnlinko Waterproof Connector

Product Description

M24 YF-24 3 Pin Socket Plug IP68 Powercom Outdoor Cnlinko Male Waterproof Connector

Specifications

Specifications

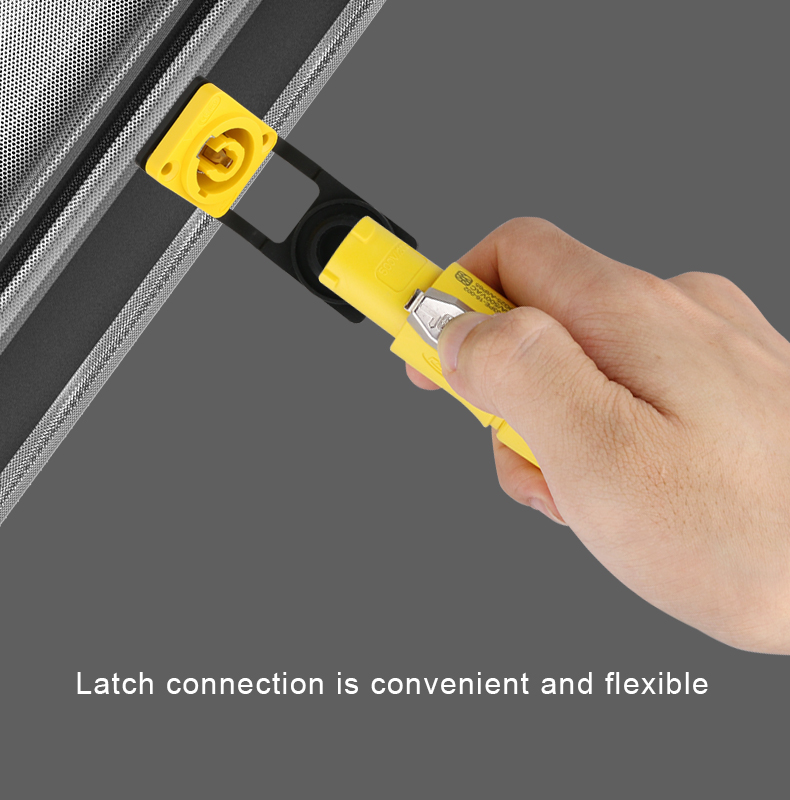

Connecting mode	Latching Lock connect
Protection level	IP44/IP65
Cable specification	2.5mm2 ~ 4mm2 /14~12AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter×Qty	Φ2.0×3
Current rating(A)	20A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	2500V
Contact resistance	<1mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
