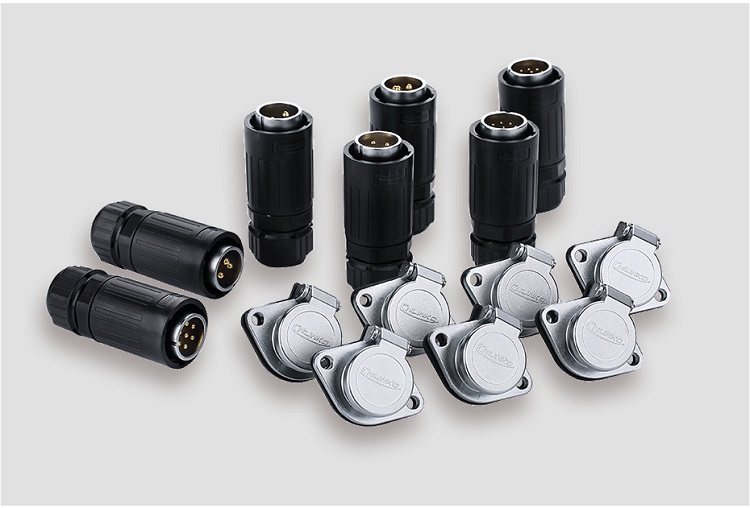

CNLINKO Waterproof Jack Shields E Bike Battery Power 3 Pole Connector Male 3 Pin Female 5 Pin Male and Female

Name: CNLINKO Waterproof Jack Shields E Bike Battery Power 3 Pole Connector Male 3 Pin Female 5 Pin Male and Female
Brand: CNLINKO
Price: 3.92 USD

Quality CNLINKO Waterproof Jack Shields E Bike Battery Power 3 Pole Connector Male 3 Pin Female 5 Pin Male and Female for sale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YA-20-C03PE-01-002

Certification : CUL,UL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : $3.92-4.57

Type : XLR

Application : Power

Gender : Male

Produce type : power connector

Current rating(A) : 20A

Protection level : IP68

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : Quickly insert and pull out

Assembly : Solder

Operating voltage : 500V

Contact pin : Copper alloy(gold-plated)

Contact Now

CNLINKO Waterproof Jack shields e bike battery power 3 pole connector

Product Description

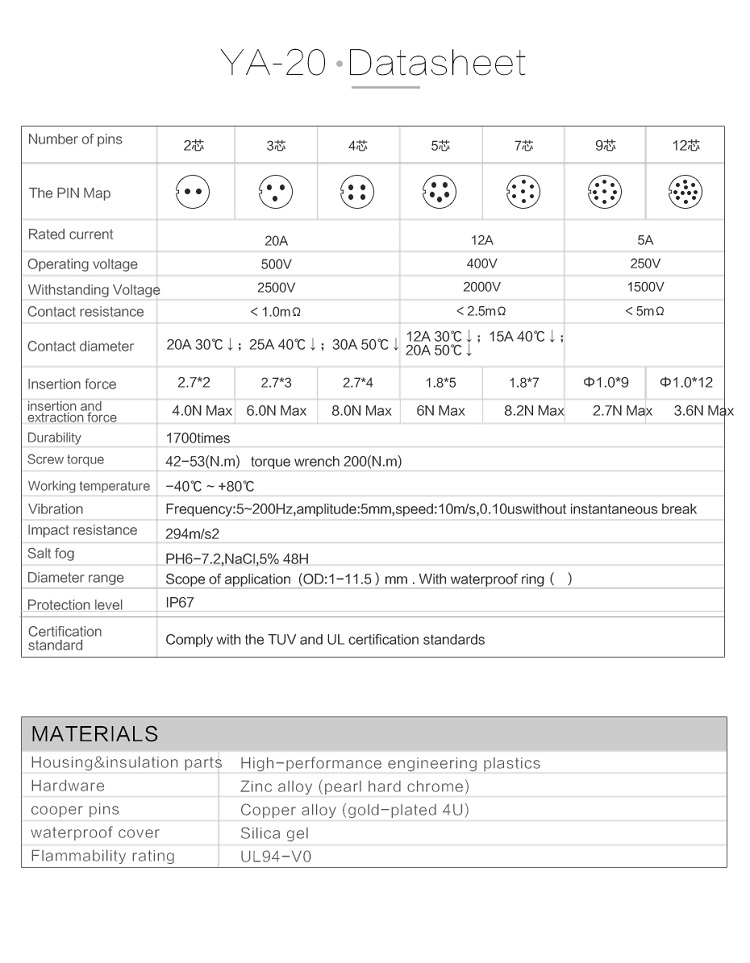

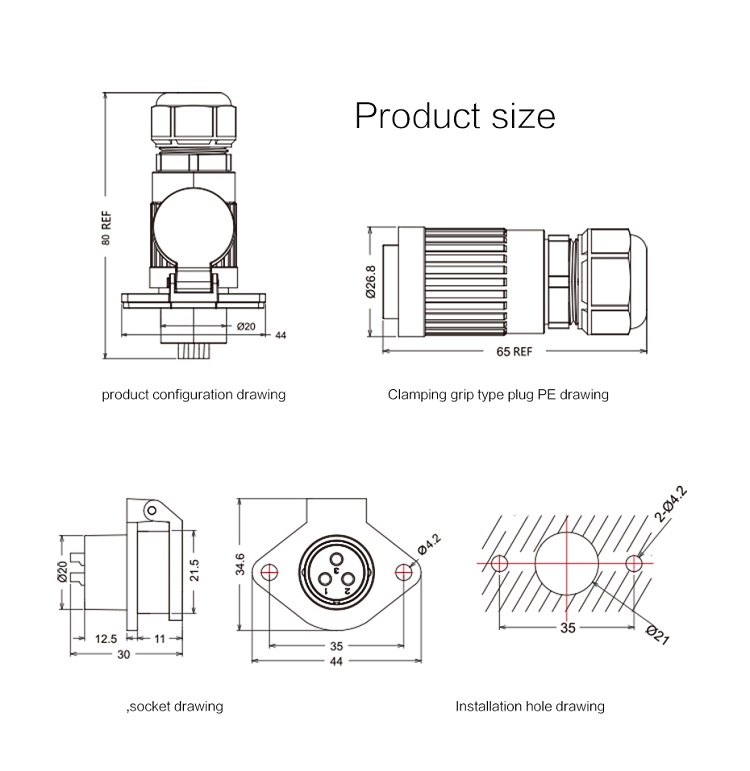

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	2.5mm² ~ 4mm² /14~12AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter×Qty	Φ2.7×3
Current rating(A)	20A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	2500V
Contact resistance	<1mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0

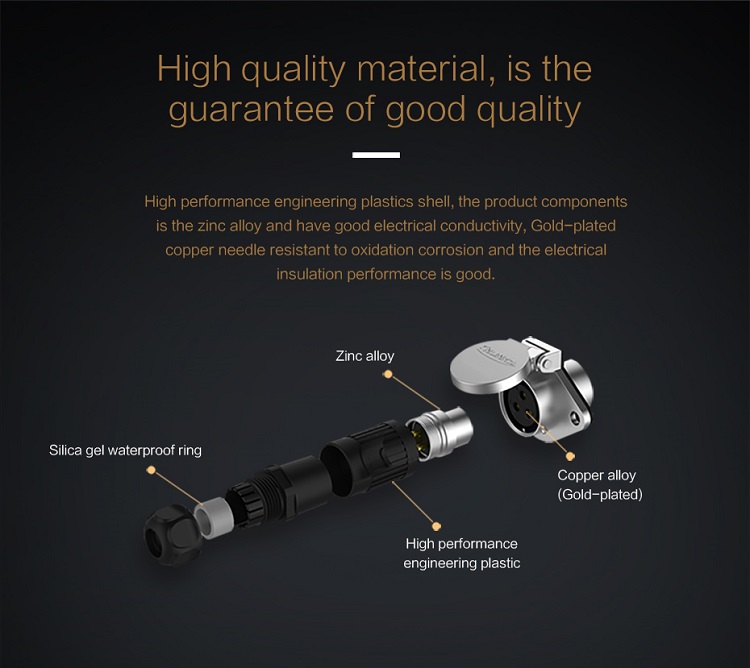

Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

CNLINKO Waterproof Jack Shields E Bike Battery Power 3 Pole Connector Male 3 Pin Female 5 Pin Male and Female

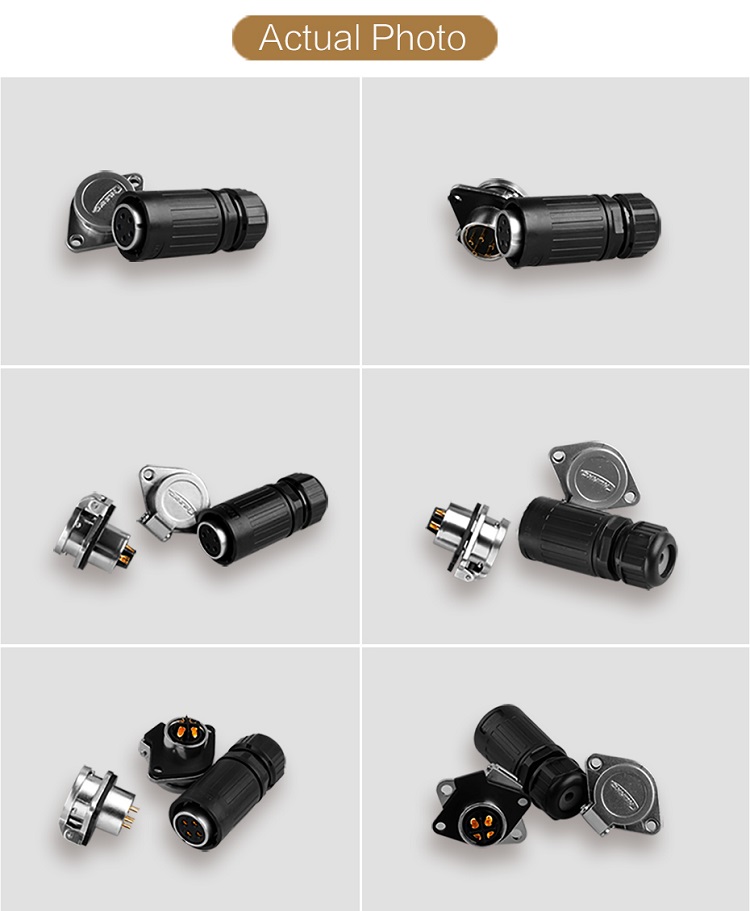

CNLINKO Waterproof Jack Shields E Bike Battery Power 3 Pole Connector Male 3 Pin Female 5 Pin Male and Female Images
