CNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power Connector

Product Categories

Shenzhen Connectorworld Technologies Co.Ltd.

Contact Now

Name: CNLINKO Waterproof Electrical Male Female Connector 3 Pole Wire Plug Socket 3 Pin Power Connector
Brand: Cnlinko
Price: 9.10 USD

Place of Origin : Guangdong, China

Brand Name : Cnlinko

Model Number : DH-20-J03PE-01-001

Certification : UL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : $9.10-10.10

Type : Industrial

Application : Power

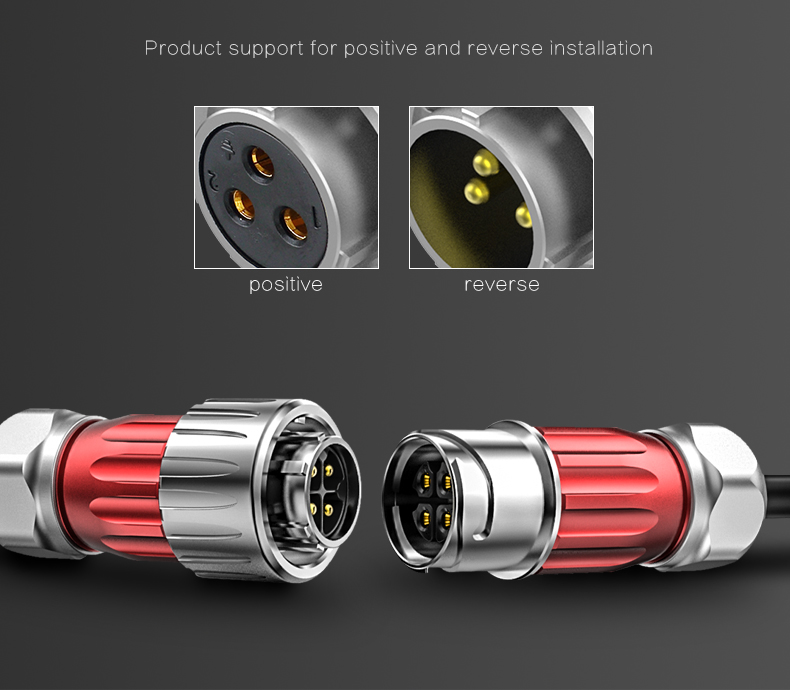

Gender : male and female, Female +male

Protection level : IP65/IP67

Pin : 3pin

Current rating(A) : 20A

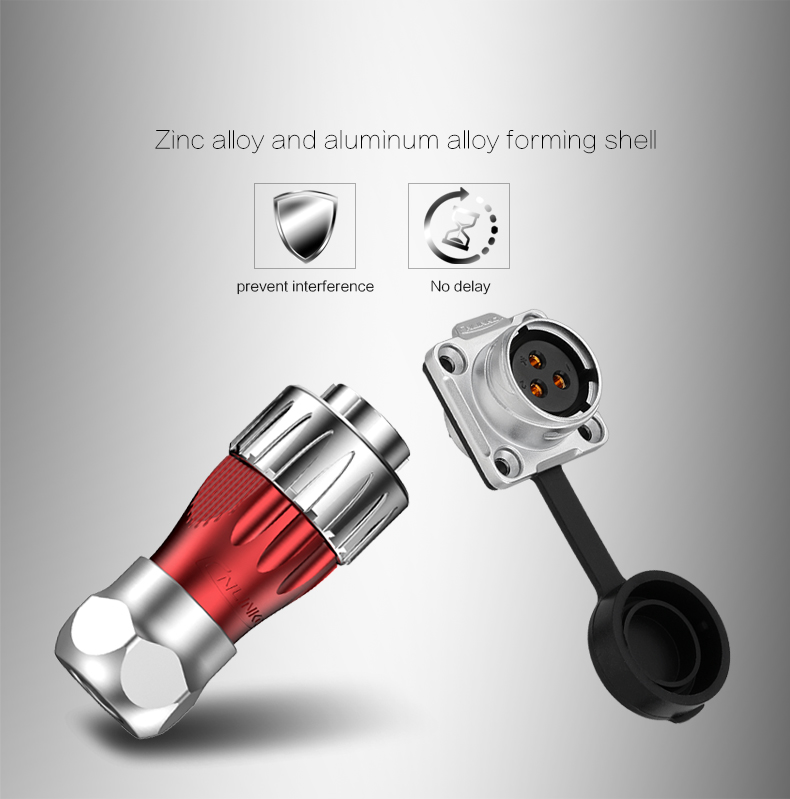

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : plug/unplug

Operating voltage : 500V

Cable Spec : 14-12AWG

Contact Now

CNLINKO waterproof electrical male female connector 3 pole wire Plug Socket 3 pin power connector

Product Description

Specifications

Specifications

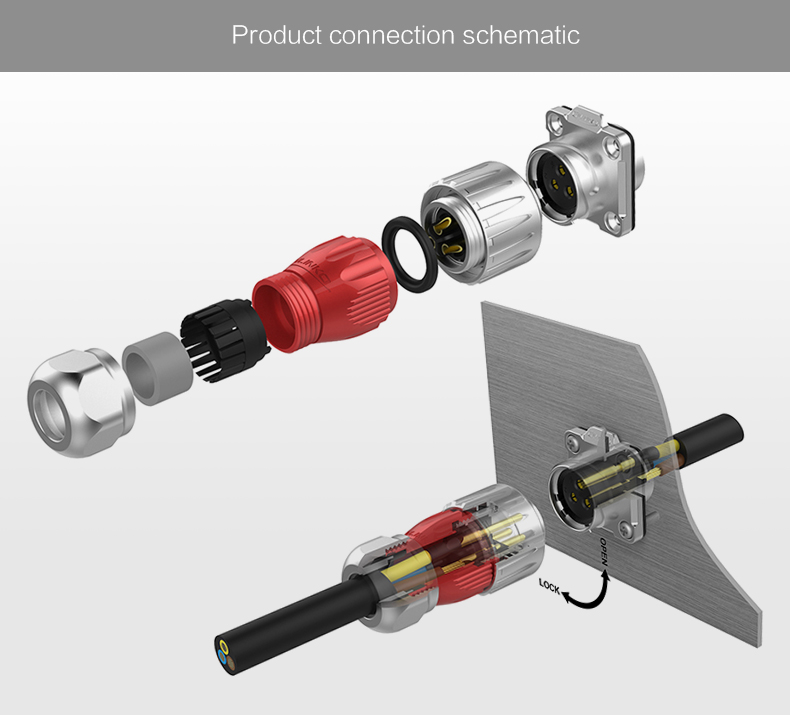

Connecting mode	1/4 bayonet connecting type
Protection level	IP67
Cable specification	2.5mm² ~ 4mm² /14~12AWG
Diameter range	Φ9mm ~Φ13mm
Contact diameter×Qty	Φ2.7x3
Current rating(A)	20A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	2500V
Contact resistance	<1mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0

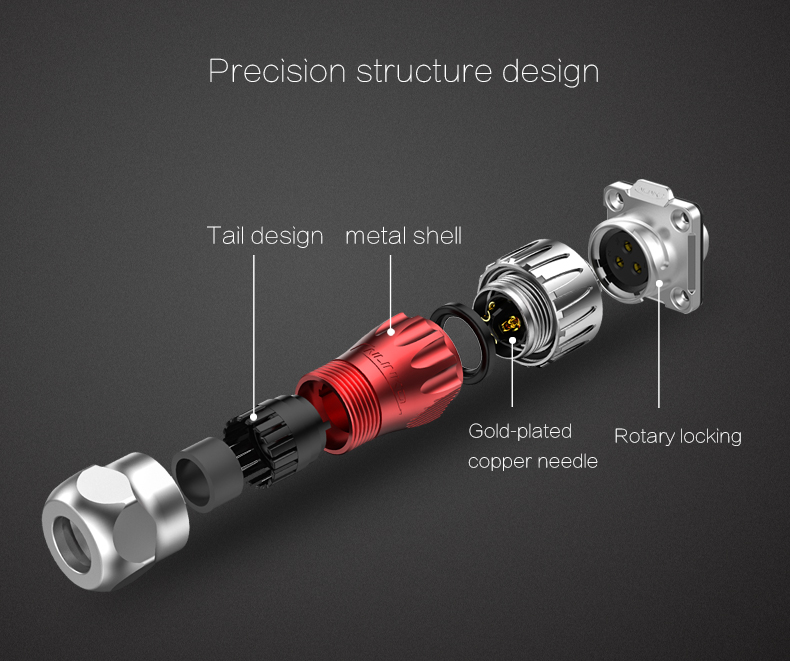

Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)

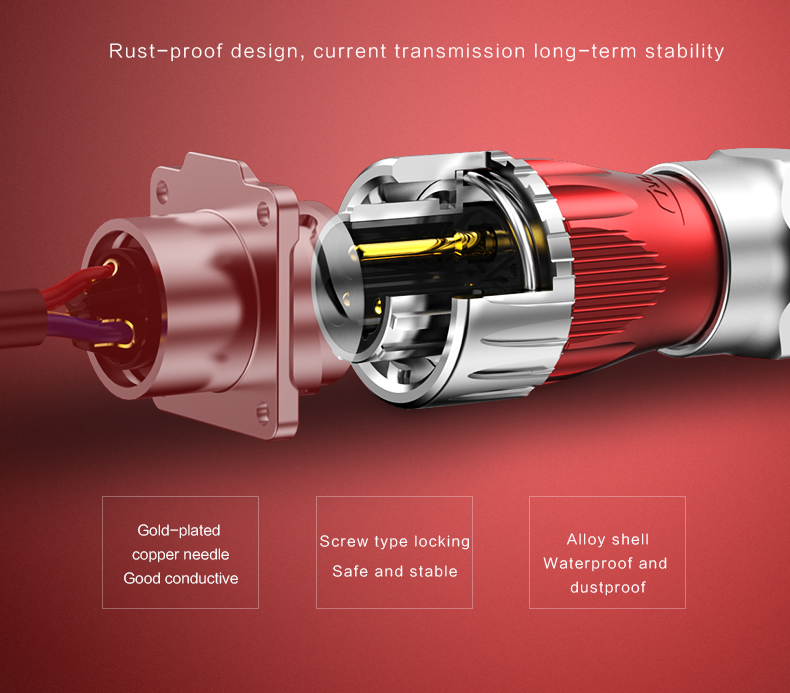

Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

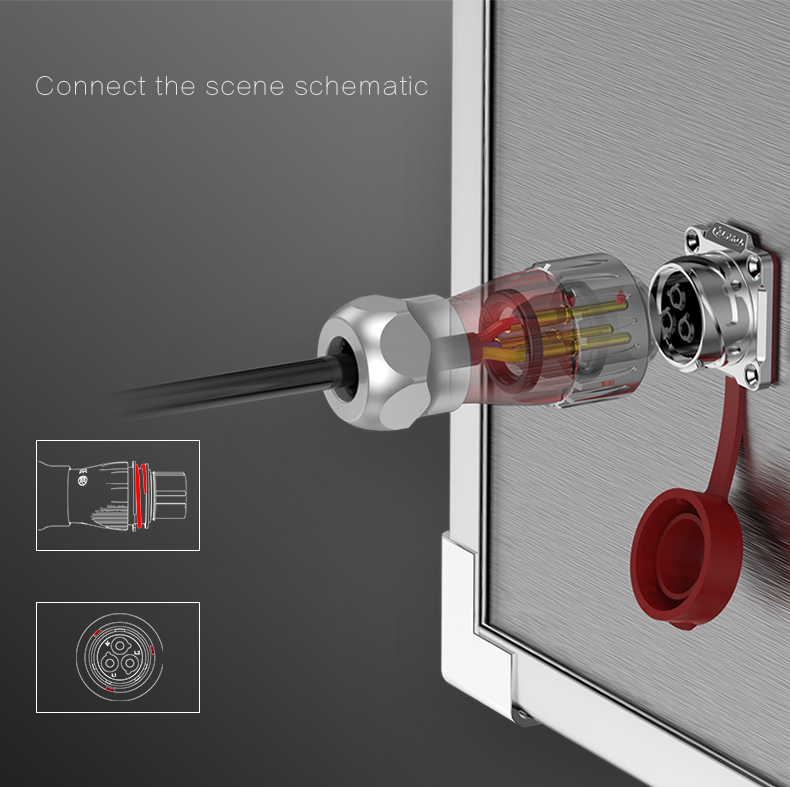

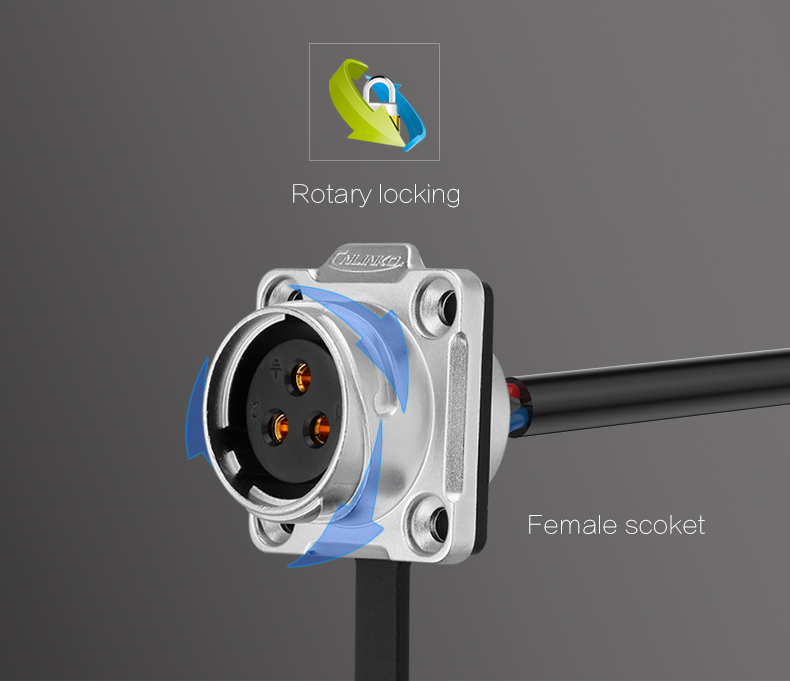

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
