CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector

Name: CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector
Brand: CNLINKO
Price: 7.45 USD

Quality CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector for sale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YZ-20-J07PE-03-001

MOQ : 10

Price : $7.45-8.69

Type : Signal

Application : Audio & Video

Gender : Male

contact diameter and number : 1.8*7

Rated Current : 10A

Operating Voltage (AC.V.RMS) : 500V

Withstanding Voltage(AC.V)1 Minute : 2500V

Protection Level : IP65/IP67

Connecting Mode : 1/4 Bayonet Connect

Flammability Rating : UL94-V0

Durability : More Than 500 Times

cable specification : 1.0m㎡~1.5m㎡/18~16AWG

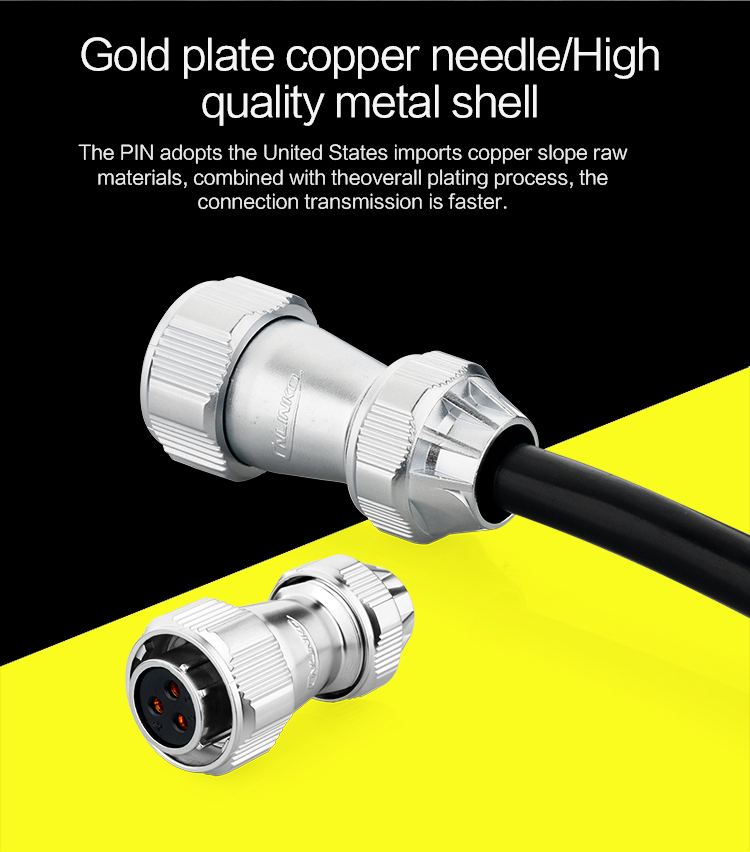

Copper Needles : Copper Alloy(Gold-Plated)

Contact Now

CNLINKO Metal Aviation Plug M20 male female Bayonet Type Socket 7 Pin 500V 10A waterproof plug and socket cable connector

Product Description

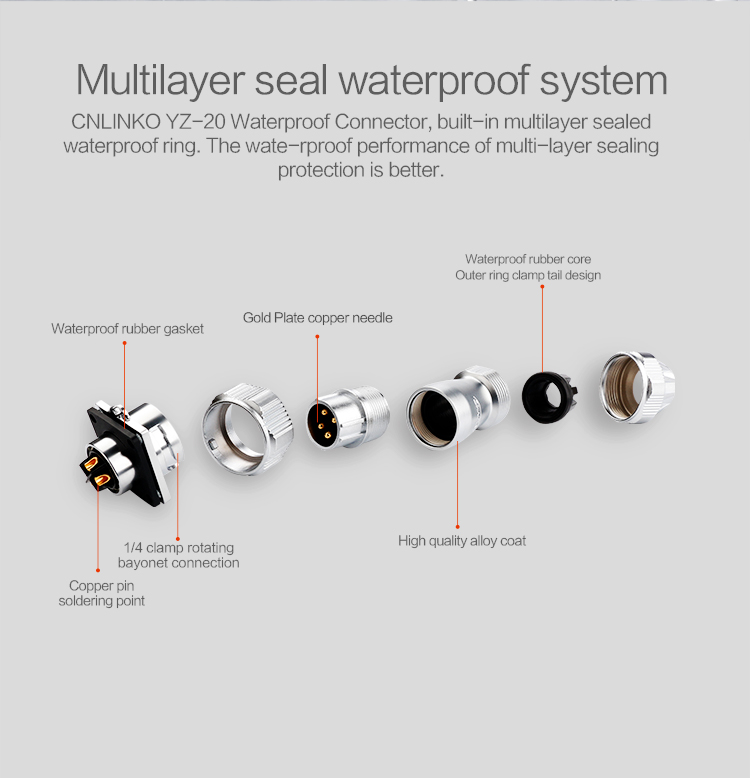

1.All zinc alloy shell,complete with electromagnetic and radio frequency interference. protection,while meeting the needs of high-end products to match.
2.Outer screw locking device a solid safety.
4.hanging dust cover design avoid matters; high safe performance,easy to operate ,

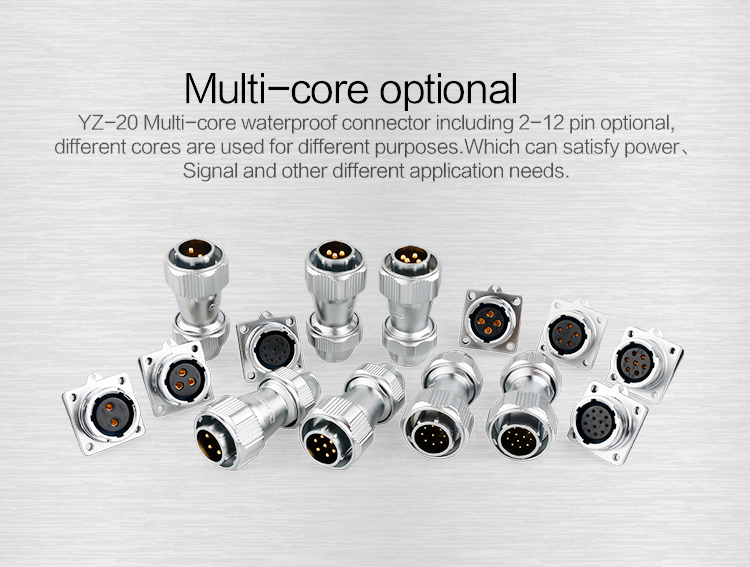

5.2-12 pin available

More Hot Products

CNLINKO Metal Aviation Plug M20 Male Female Bayonet Type Socket 7 Pin 500V 10A Waterproof Plug and Socket Cable Connector

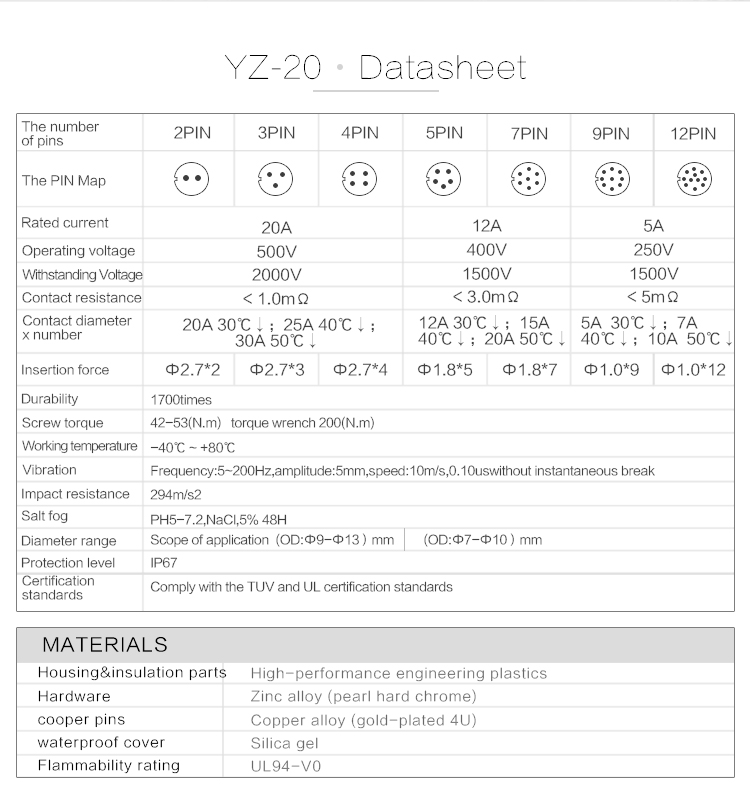

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	1.0~1.5mm2 /18~16AWG
Diameter range	Φ7.0mm ~Φ10.0mm
Contact diameter×Qty	7 Pin
Current rating(A)	10A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	/
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
