CNLINKO 3 Pin Male Female Industry Application Power Waterproof Connectors 3 Phase Plug System Connector

Name: CNLINKO 3 Pin Male Female Industry Application Power Waterproof Connectors 3 Phase Plug System Connector
Brand: CNLINKO
Price: 16.80 USD

Quality CNLINKO 3 Pin Male Female Industry Application Power Waterproof Connectors 3 Phase Plug System Connector for sale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : LP-28-C03

Certification : CUL,UL,CE,ROHS,CCC,ISO9001

MOQ : 10

Price : US$16.80-17.80

Type : Power

Application : Industrial

Gender : male and female

Produce type : Waterproof connectors

Current rating(A) : 35A

Protection level : IP67/IP65

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : Quickly insert and pull out

Assembly : Soldering

Operating voltage : 500V

Contact pin : Copper alloy(gold-plated)

Contact Now

CNLINKO 3 pin male female Industry application power waterproof connectors 3 phase plug system connector

Features:

With multi-core design to fit with different industrial needs
Alloy metal socket is with fully electromagnetic and radio frequency interference protection
With gold-palted contact,stronger corrosion resistance and conductivity
PBT materials shell,stable electrical performance,pressure-resisting,high temperature resistance,anti-explosion,anti-corrosive
2/3/4/5 pin for power connector,7/9/12 for signal connector,power and signal can be compatible match
IP67/IP68 when mated
Current rating:5A/12A/20A 30A 50A rms
Please indicate if you need the protection level more high

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67

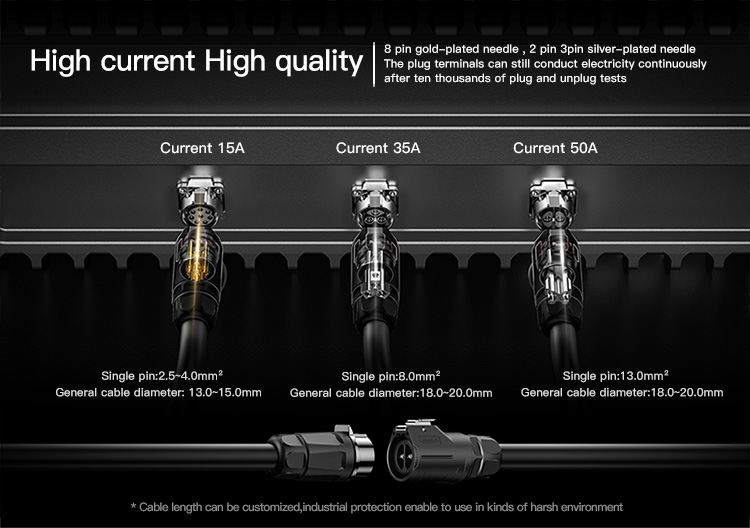

Cable specification	8mm² /8AWG
Diameter range	Φ18mm ~Φ20mm
Contact diameter×Qty	Φ4.0×3
Current rating(A)	35A
Temperature rise	20A contact temperature below 30℃ 25A contact temperature below 40℃ 30A contact temperature below 50℃
Operating voltage(AC.V.rms)	500V
Withstanding voltage(AC.V)1min	2500V
Contact resistance	<1mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
shell & Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover

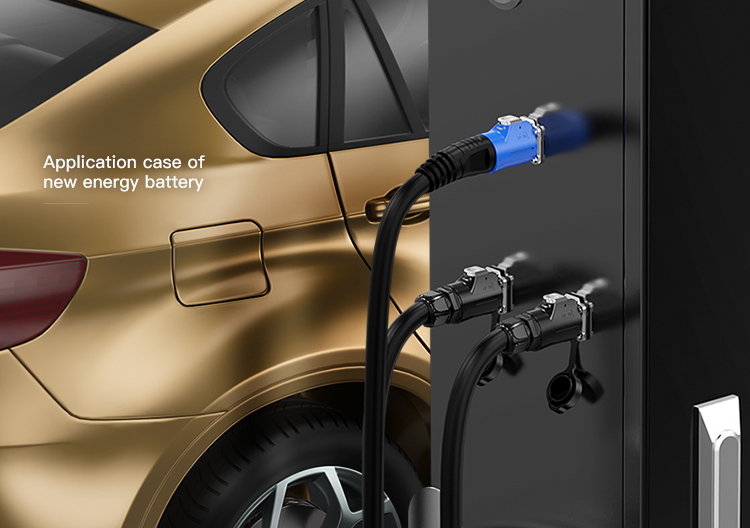

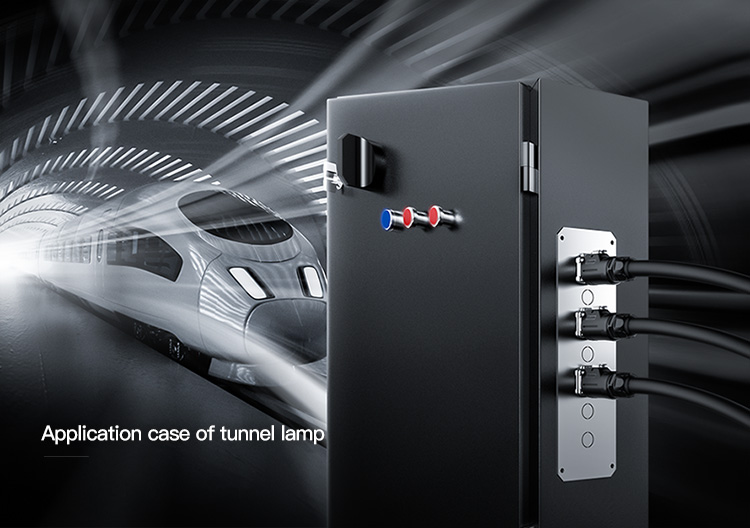

Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
