CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector

Name: CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector
Brand: cnlinko
Price: 12.30 USD

Quality CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector for sale

Place of Origin : Guangdong, China

Brand Name : cnlinko

Model Number : DH-24-C04PE-03-001

Certification : UL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : US$12.30-13.30

Shape : ROUND

IP level : ip68

Type : XLR

Application : Power

Gender : male and female, Female +male

Protection level : IP65/IP67

Product type : Welding Cable Connector Socket

Product name : 4 pin ip68 connector

Current rating(A) : 25A

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Metal : Zinc Alloy (pearl hard chromium)

Connecting mode : plug/unplug

Operating voltage : 500V

Contact Now

CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP67 Connector

Specifications

Specifications
Connecting mode	1/4 bayonet connecting type
Protection level	IP67
Cable specification	2.5mm2 ~ 4mm2 /14~12AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter×Qty	Φ3.0×4
Current rating(A)	25A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	2500V
Contact resistance	<5mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0

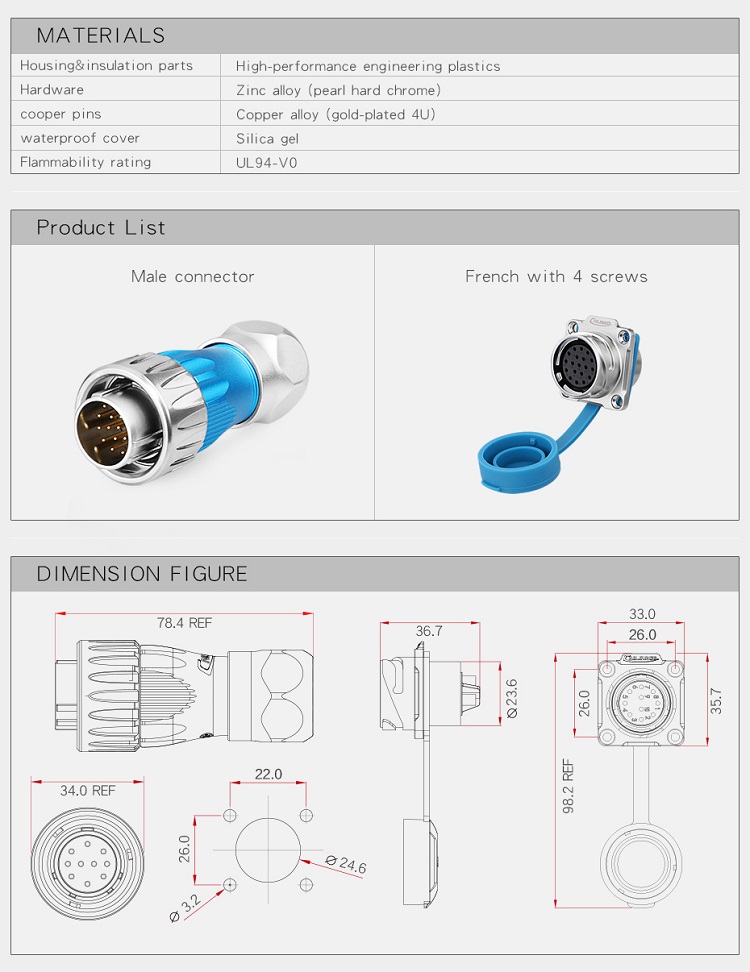

Material
Shell	Zinc Alloy
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

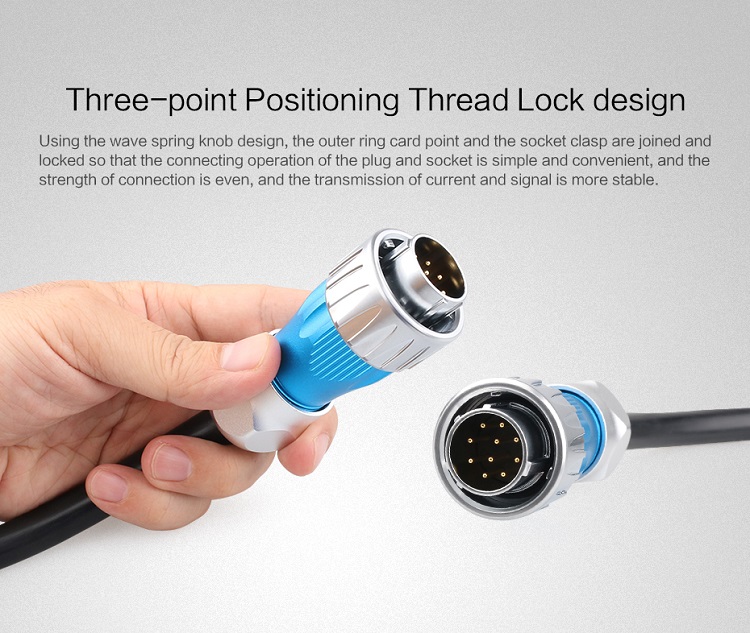

1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

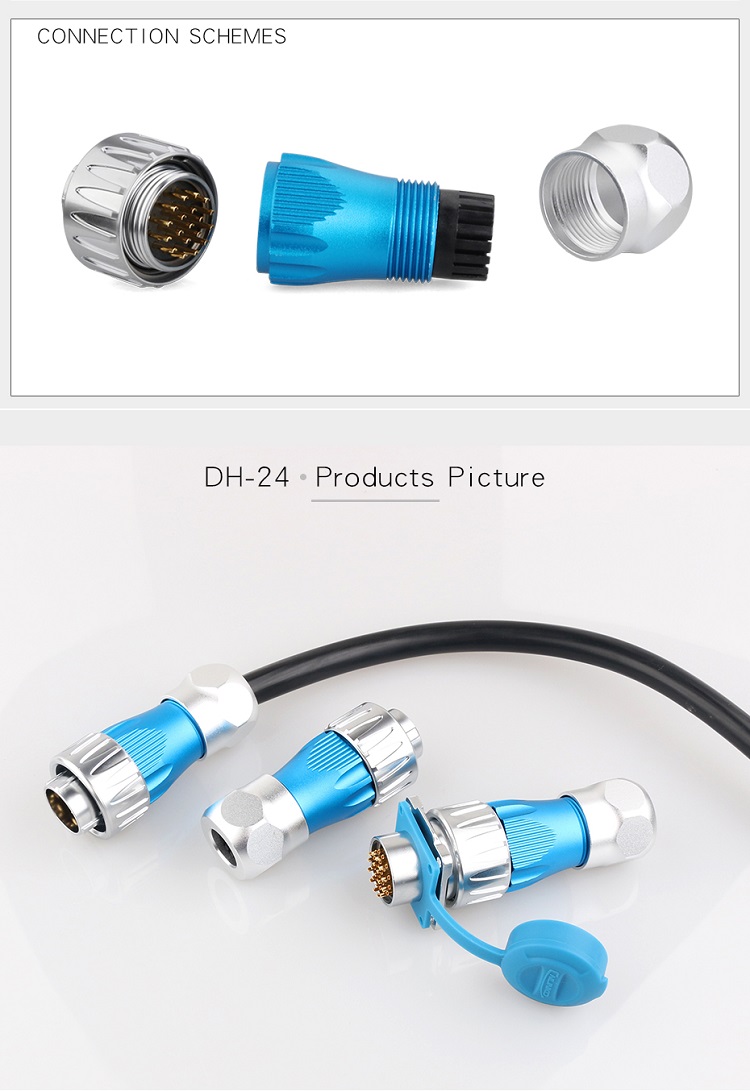

CNLINKO Industrial High Current Solar Battery Waterproof Rotary Power 220vac Male Female Plug Socket 4 Pin IP68 Connector Images
